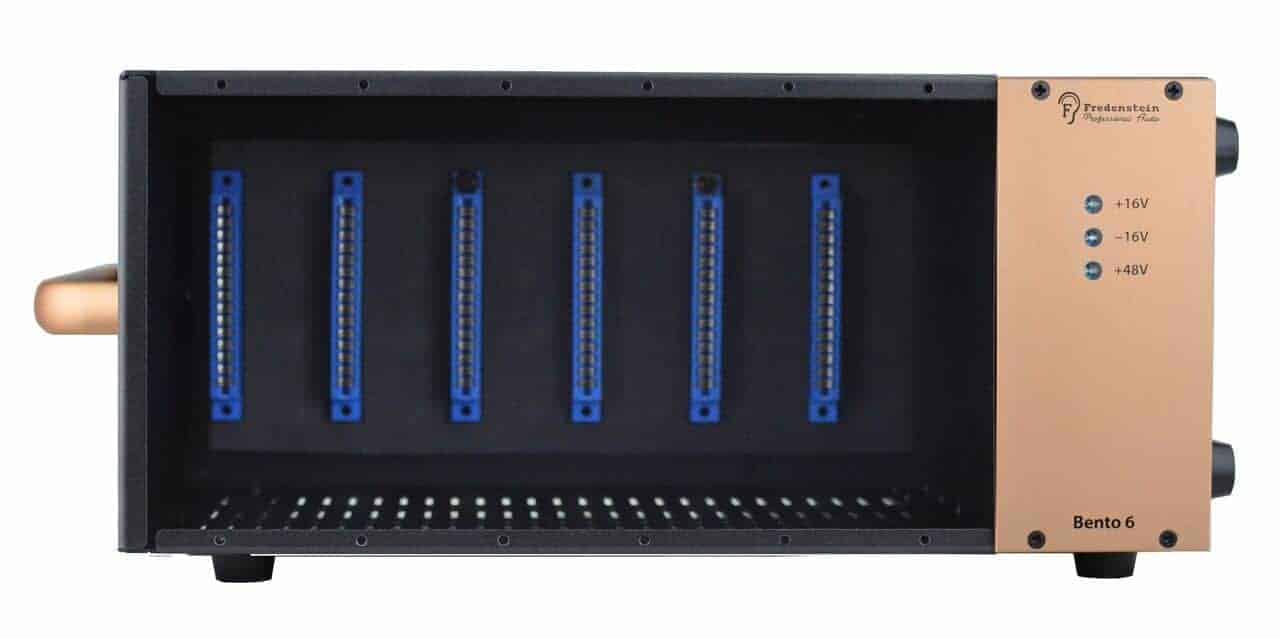

Fredenstein Bento 6 500 Series Chassis

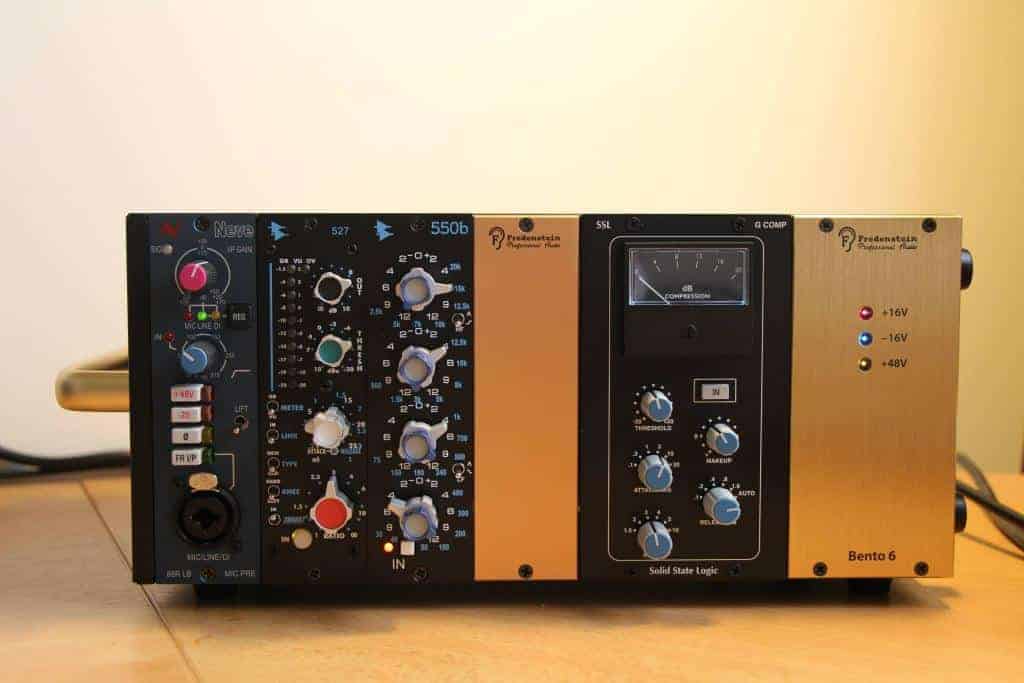

The Fredenstein Bento 6 is a compact carrying enclosure for six Fredenstein F60X modules or other industry standard compatible cards. Fredenstein’s advanced audio routing capabilities significantly reduce wiring complexity. Delivering +/-16Vdc at 1.6A each and +48Vdc at 0.3A, Bento 6 will work properly even with the most power demanding modules. A universal power supply (90Vac – 240Vac, 50Hz – 60Hz) makes international touring a breeze. The multi-layer backplane ensures lowest noise figures and maximum signal integrity.

Specifications:

Input Voltage: 90V AC to 240V AC, 50 to 60 Hz

Output Voltages: +16V DC 1.6A

-16V DC 1.6A

+48V DC 0.1A

Power Consumption: max 90W

Dimension (LxHxD): 300mm x 135mm x 190mm (without handle and feet)

Weight: 3.8kg(NW) ; 4.8kg(GW)

350mm x 145mm x 190mm (including handle and feet)
