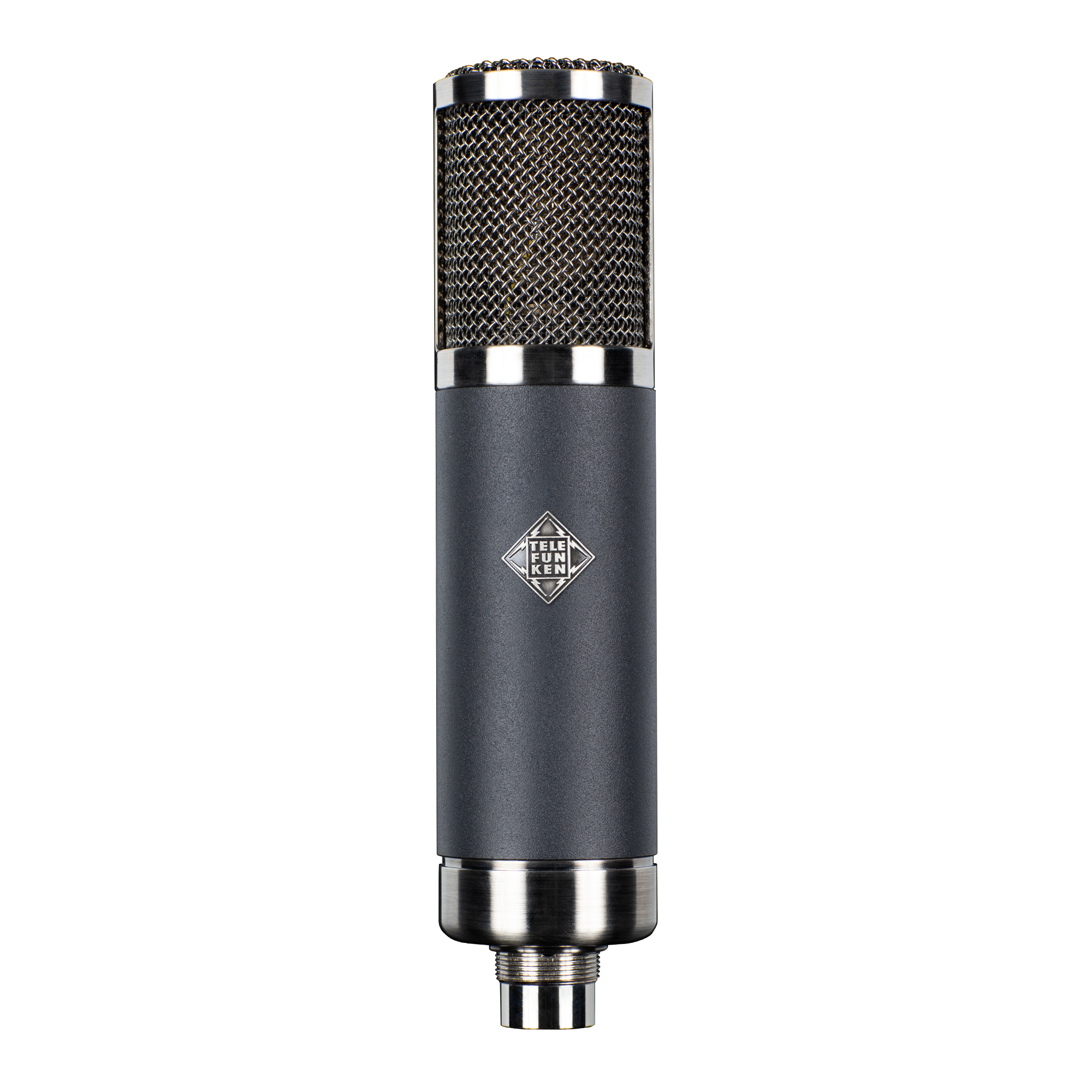

“The TF47 is a new design based on the “German” sound, drawing inspiration from the historic U47 and M49. With a deep low end and a forward midrange, the TF47 is excellent for adding depth and presence to any source. These characteristics make it especially ideal for recording vocals, guitar amps, and drums.
At the heart of the TF47 is an all-brass K47-style capsule, new old stock 5840W vacuum tube, and custom-made historically accurate BV8 transformer (as found in the U47). These components deliver a warm and punchy sound reminiscent of the U47 with a pleasant top end articulation that sits perfect in a mix.

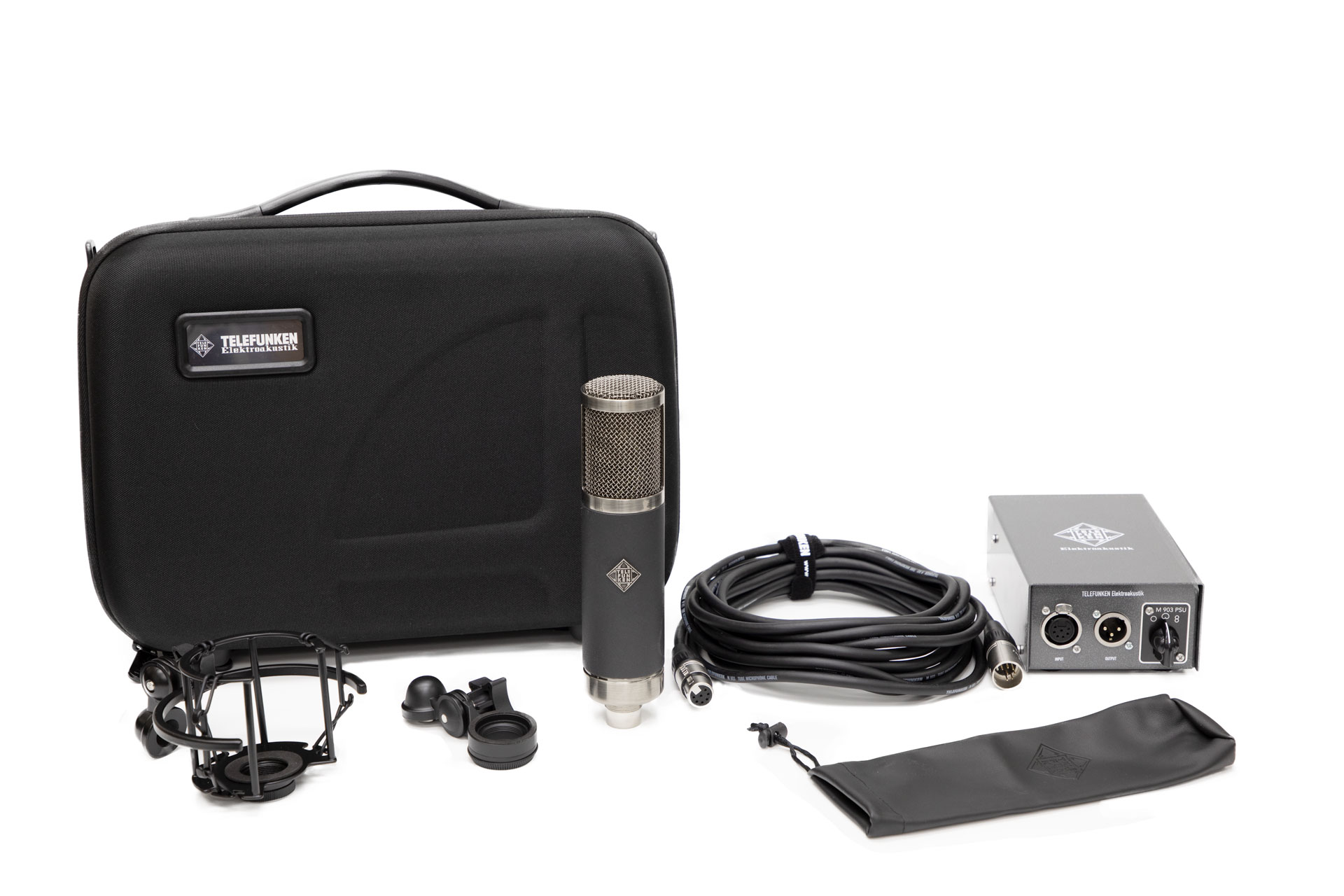

Every TF47 microphone system comes with a multi pattern M 903 Power Supply, M 803 Tube Microphone Cable, ZC03 Carrying Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.
Vacuum Tube Condenser
|Polar Pattern||Cardioid, Omnidirectional, Figure-8|
|Frequency Range||20 Hz – 20 kHz, ±3 dB|
|Power Source||External Power Supply|
|Capsule||TK47 – Center Terminated Large Diaphragm|
|Tube||NOS Philips/Raytheon 5840W|
|Transformer||TELEFUNKEN Elektroakustik BV8|
|Sensitivity||22 mV/Pa, ±1 dB|
|THD at 1kHz, 1 Pa (Amplifier)||< 0.3%|
|Output Impedance||< 300 Ω|
|Maximum SPL (for 1% THD)||125 dB|
|S/N Ratio||84 dBA|
|Self Noise (Amplifier)||10 dBA|
|Dimensions||200 mm L x 46 mm Dia|
|Included Accessories||Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case|
|Power Supply||M 903 PSU|
|Shockmount||M 703, M 782|
“Every TF47 microphone system comes with a multi pattern M 903 Power Supply, M 803 Tube Microphone Cable, ZC03 Carrying Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.”
