PreSonus Monitor Station 2 – Desktop Studio Control Center

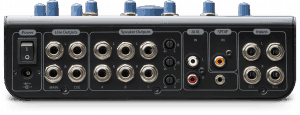

Inputs and Outputs

• 2 Stereo pairs of ¼” TRS inputs
• 1 Stereo pair of RCA Aux inputs
• 1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
• 3 Stereo pairs of ¼” TRS speaker outputs with level controls
• 1 Stereo pair of ¼” TRS Main outputs
• 1 Stereo pair of ¼” TRS Cue outputs
• 4 ¼” TRS screaming-loud stereo headphone outputs

Controls

• Large Main level control
• 3 Individual Main Source (ST1, ST2, Aux) select switches
• 3 Individual Speaker Select switches
• Cue section with Source select (ST1, ST2, Aux) and output-level control
• Aux-S/PDIF Select switch
• Aux Input level control
• Main Mute, Mono, and Dim switches with variable Dim attenuation

Additional Features

• 8-segment color LED input meters with selectable reference level
• Built-in electret-condenser talkback microphone with input-gain control and Talkback button
• Convenient desktop design
