Take Command of the Monitor Speakers
With Central Station, you’ll be able to simply switch among 3 sets of stereo, analog input sources. Two stereo S/PDIF digital sources connect through 1 coax and a single Toslink optical port. You’ll be able to audition these sources with as much as three pairs of speakers, with person trim pots for every speaker-recessed to prevent accidents.
You
largely monitor on near-fields, but sometimes switch to huge primary speakers or perhaps a second set of near-fields. You should have the ability to switch in between multiple sources and desire to hear what your mix sounds like with and with no subwoofer. You would like to monitor straight from digital sources too as analog. And also you do not want cables cluttering your workspace in order to achieve all that.Meet the Central Station PLUS.

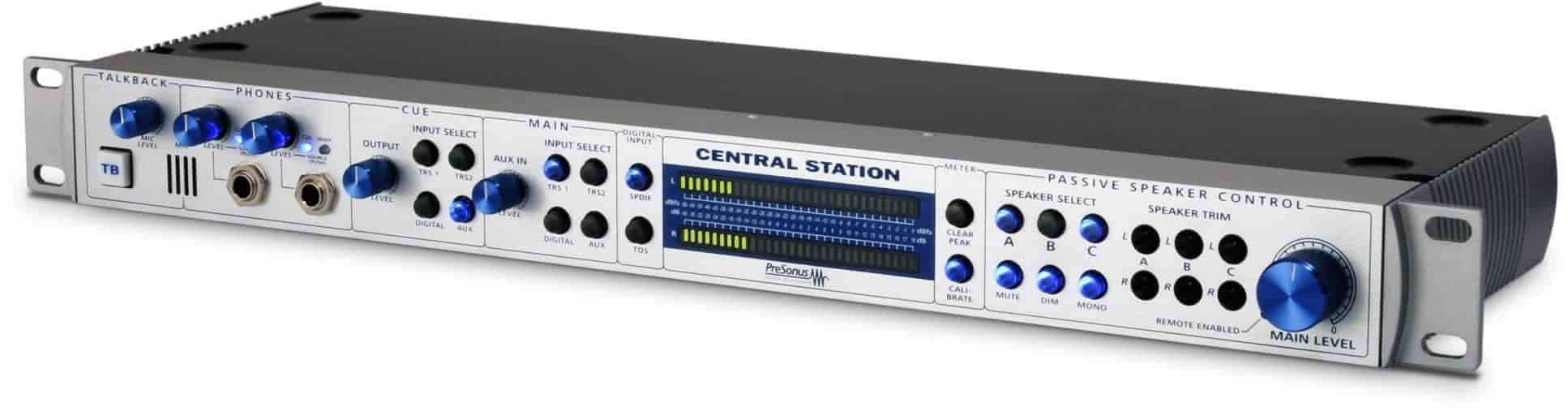

Central Station PLUS is
A Wide
Assortment of Input and Output OptionsWith Central Station, you’ll be able to simply switch among 3 sets of stereo, analog input sources. Two stereo S/PDIF digital sources connect through 1 coax and a single Toslink optical port. You’ll be able to audition these sources with as much as three pairs of speakers, with person trim pots for every speaker-recessed to prevent accidents.
You also get a pair of line-level principal outputs, a pair of line-level cue outputs, and two screaming-loud headphone amplifiers with individual level controls. And because Central Station is a 1U rack-mount device, with only a single multi-conductor cable operating towards the remote manage on your desktop, all of the cabling is inside the back of the rack, exactly where it belongs.
High-End Audio
Top qualityThe pros realize that for critical listening, a monitor-control system have to be as sonically transparent as possible. That’s why we gave the Central Station an audiophile-quality, passive signal path, with no op-amps or ICs, and equipped the S/PDIF inputs with high-definition, 24-bit, 192 kHz D/A converters.
The Meters
To allow you to watch your input levels, the Central Station sports dual 30-segment, tri-colored, fast-acting, peak-hold LED meters, which may display dBu and dBfs. A handy Clear switch allows you to clear the peak-hold.
Not like The Meters, these meters are something but funky!
A
Comprehensive Tool SetBecause Central Station PLUS is really a qualified tool, we’ve included all of the key functions you will require to manage monitors in a commercial or project studio. Speak for the musicians more than the headphone and cue buses making use of the onboard talkback microphone or connect a dynamic mic for the XLR talkback input.
The cue signal is automatically dimmed once you use the talkback mic, as well as a jack admits a footswitch for hands-free talkback operation. A Mono switch sums the stereo supply so you are able to verify for phase problems, plus a Dim switch lets you minimize the speaker output by 16 dB.
Of course, it is possible to mute the speakers as well.
Ultimately, together with the integrated CSR-1, you’ll be able to remote-control the Central Station’s principal volume, input pick, output pick, talkback, mute, dim, and mono functions.
The Professional’s
SelectionWith pristine audio high quality; the ability to switch amongst several analog and digital sources and 3 sets of speakers; quickly, precise metering; and all of the extras that make your studio operate less difficult and more effective, it’s clear why the Central Station PLUS is the expert engineer’s decision for monitor manage.
