Phoenix Audio DRS 1 – Mono Mic Pre Amp DI

$1,199.00

Phoenix Audio DRS 1 – Mono Mic Pre Amp DI

SKU: DRS1Mono Category:
Description

Description

Following on from the huge results of the DRS-2, 2– channel microphone pre-amplifier/DI, Phoenix Audio have introduced the single channel, half rack-width, mono Pre/DI. The DRS-1 Mic-Pre/DI uses our well tested and adored Class A output stage (DSOP-2), but also has our latest advancement in transformerless Class A, Discrete Mic Input Technology which offers a “valve-like” sound. It also incorporates our high input impedance DI circuitry



Specifications:

  • 1U half rack space unit: With 240V/110V mains voltage input selector switch
  • Class A (DSOP2) Output specs. Frequency response: 20Hz to 20kHz +- 0.5dB, Maximum Output = +26dBu @ 1kHz, Noise = -90dB @ 20Hz to 20kHz.

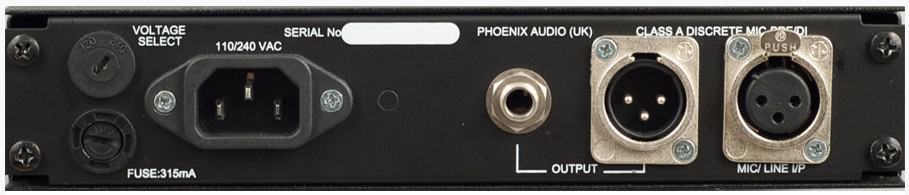

  • Output connections: XLR’s and TSR 1/4″ Jack on rear

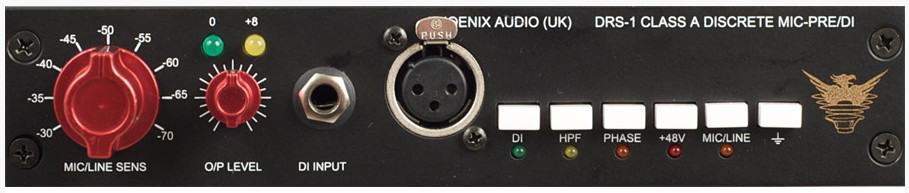

  • Phoenix Audio’s unique Class A, transformerless, True balanced Mic input stage. Microphone inputs: XLR’s on Front and Rear Panels
  • Phoenix Audio’s unique Class A, transformerless, True balanced Mic input stage. Microphone inputs: XLR’s on Front and Rear Panels
  • Individual Earth Lift: Push-button Switches
  • Gain Range (Mic input): -30 to -70 in 5dB steps With 10dB more available on the fader.
  • Gain reduction: -30dB push-button Mic/Line switch (Mic input)
  • High Input Impedance DI: Mono 1/4″ Jack on front panel
  • Gain Meter: LED Metering. (Green = 0dB, Red= +8dB, corresponding to “4” and “6” on a PPM Meter).
  • Phantom Power: Switchable phantom on Push-button Switche
  • High Pass Filter: on Push-button Switch
  • Phase Reverse: on Push-button Switch
  • Frequency Response Mic Input Stage: -0.4dB @ 40Hz, -0.3dB @ 25kHz
  • Frequency Response: DI Input Stage: -0.3dB @ 40Hz, – 0.5dB @ 25kHz
  • Typical Headroom: +24dB on Mic-Pre stage
  • DI Stage gain: Maximum of 20dB
  • All units are wired with PTFE silver military grade cable
Brand

Brand

Phoenix Audio

Phoenix Audio
Additional information

Additional information

Weight 3 lbs
