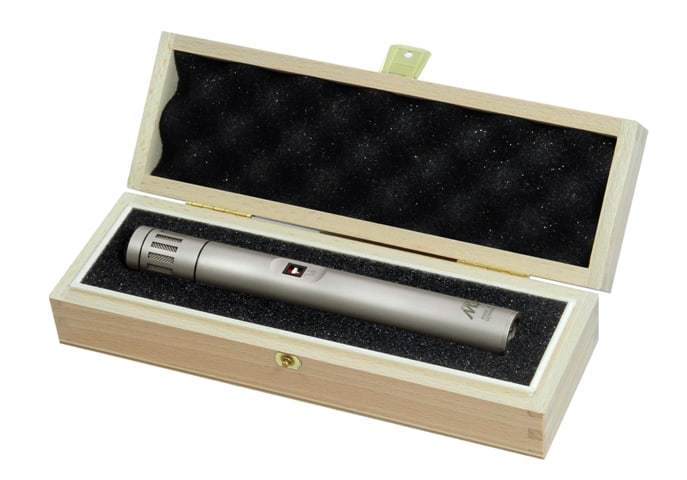

Microtech Gefell М200 Studio Condenser Microphone

The condenser miniature microphone system SMS 2000 consists of microphone preamplifier and exchangable capsules with the polar patterns cardioid, hyper cardioid and omnidirectional.  This allows universal application in professional recording and sound reinforcement.

The newly developed, transformerless circuit design substitutes the previous transformer for a symmetrical output stage. The preamplifier is distinguished by its remarkably low intrinsic noise and output capabilities.

The module system adjusted to optimum reproduction properties allows a particularly clean and colourless sound reproduction.

The direction of maximum sensitivity is axial. The studio microphone module system is equipped with a comprehensive range of accessories for widely varying methods of microphone mounting.

lt is possible to activate a 10 dB-preattenuation for handling very high sound pressure levels. A sensitivity reduction for low frequencies can be utilized to suppress the proximity effect. The two switches are sunk into the middle of the microphone.

The microphone are equipped with a standard 3-pin XLR connector fitting to a microphone cable, e.g.  C 70. The operation voltage is provided by 48V phantom powering according to the international standards DIN 45 596 and IEC 268-15.

The studio microphone system is available in a satin nickel and black matt finish.

M20

The microphone capsule M 20 is a pressure gradient transducer with cardioid polar pattern which has well-balanced frequency contours in relation to the sound incidence direction and a desirable smooth presence boost in the upper recording range.
These properties of the capsule preserve the natural accentuation of soloists and instruments when recording. lt is recommended to use a popscreen for closerange applications and to switch the bass roll-off an the preamplifier on.
