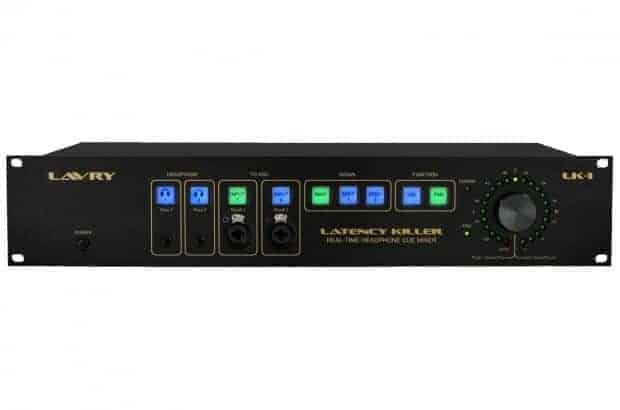

Lavry Engineering LK-1 Latency Killer
The Latency Killer™ (LK-1) is a specialty product; it does not fit into any standard category. It is for overdubbing work – latency free real time monitoring of DAW.
The basic concept is based on muting the playback of the recorded channel (on the DAW), and replacing it with the music signal before the AD conversion.
Such signal replacement is not new, it has been done in studios utilizing mixers, headphone amplifiers and various gear for steering analog signals. The LK-1 offers a complete integrated solution.
The LK-1 offers a big advantage over mixers: There is no signal alteration and no coloration because the LK-1 output is hardwired to the input (no electronics in the signal path). Mixers place many additional circuits in the signal path.
Converter makers have been pushed to accommodate low latency. This comes at great sacrifices in audio quality. This is the tail wagging the dog. Some IC makers go as far as providing “switchable” digital filters (lower latency at lower quality or higher latency for higher quality). The LK-1 enables use of quality converters (no latency concerns).
Freedom from latency concerns enables use of large buffers, many plugins in series and even additional hardware in the signal path, with no limits.
The user interface of the Latency Killer is designed for easy workflow. The learning curve is minimal. The hookup (with any digital system) is easy and requires no additional hardware (other than a few cables)
The rotary settings are precise and repeatable. 3dB coarse and 1/2dB fine steps for volume and thirteen positions for pan. The unit also offers 2 complete user defined presets.
Two separate headphone amplifiers (with individual volume control) accommodate different headphones and ear sensitivity. This is especially helpful when the musician and the DAW operator are not the same person.
The LK-1 also offers hookup to effect units (DDL and reverb are often used in overdubbing to help the musician hear themselves above the recorded music tracks). The effects channels only modify what is heard through the headphones and leave no marks on the recording tracks. However, there are optional feed-through outputs for effects to be recorded on separate tracks.
