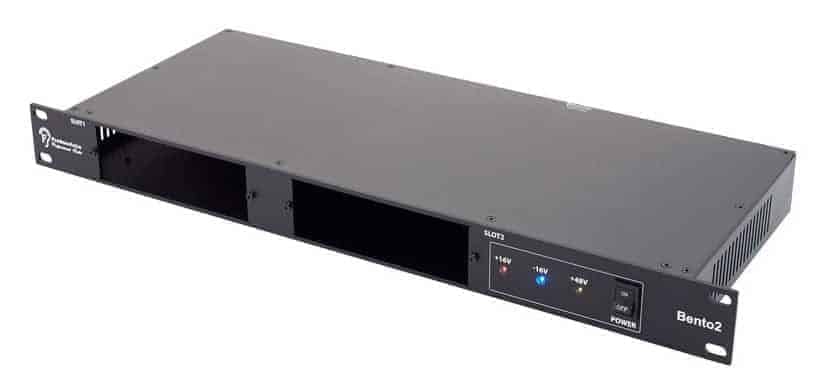

The Fredenstein Bento 2 is a high performance two module carrier for Fredenstein Series 600 modules or API-500 compatible plug-in cards. The unit can accept a maximum of 2 modules. The Bento 2 features several important upgrades compared with third party products:
Universal power supply: Mains voltages range from 90V AC to 240V AC, 50 to 60 Hz.
Increased output currents: +/-16V DC 0.9A and +48V DC 0.033A

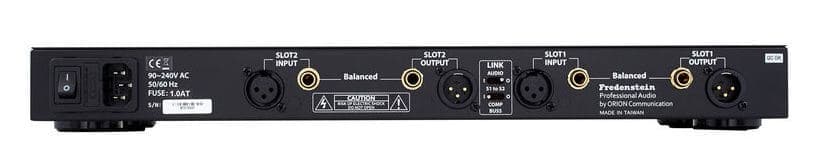

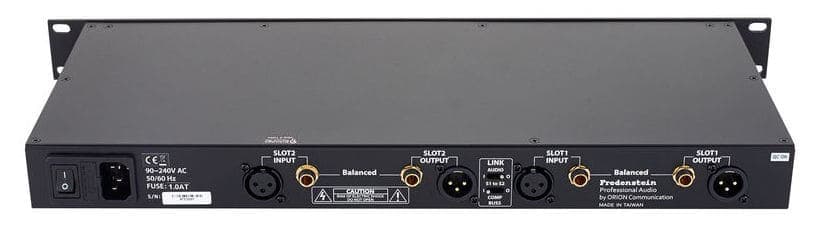

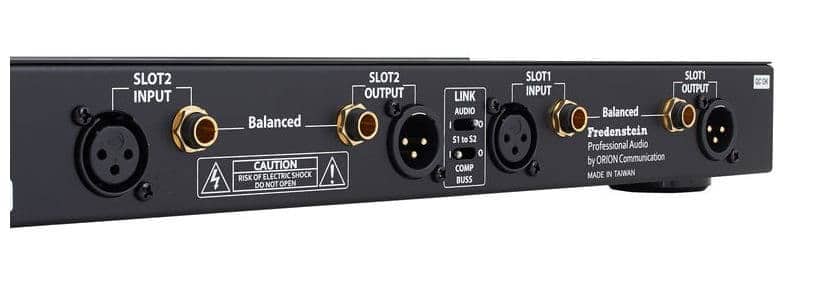

Additional TRS inputs and outputs, parallel to the XLR connectors.
Built-in Audio Routing: Slot 1 can be daisy-chained to slot 2 by simply flipping a switch on the back-panel.
Compressor buss linking: Compressor modules can be linked by engaging a switch on the back-panel as well.

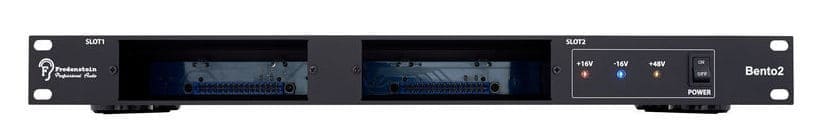

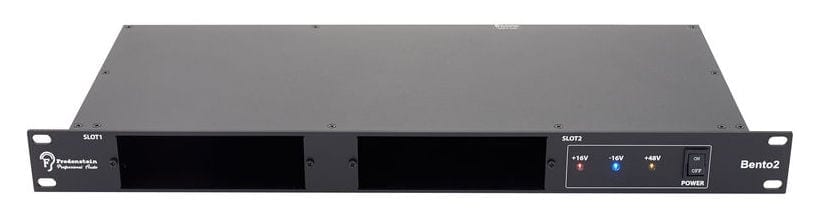

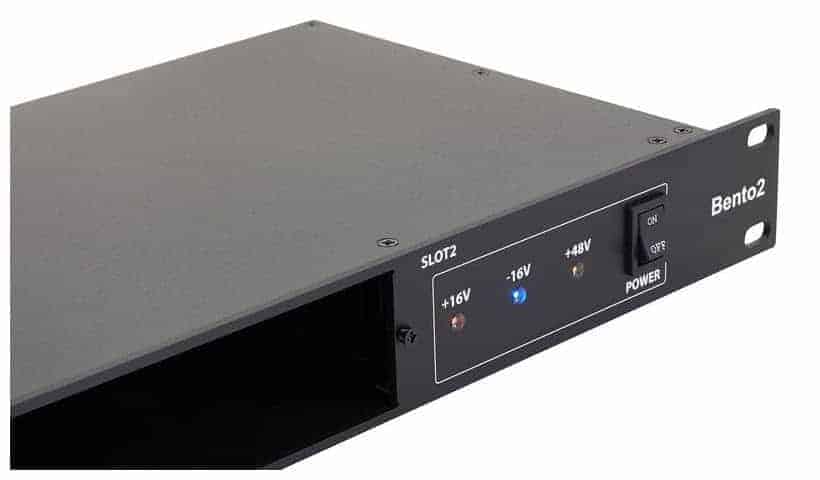

Secondary power-switch and voltage indicators are on the front-panel.
