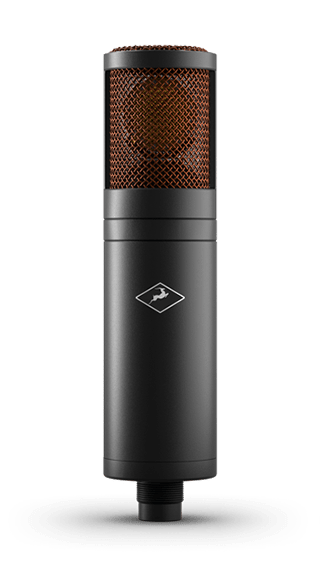

Antelope Edge Duo
Modeling Mic
Тhis high-quality dual-membrane large-diaphragm condenser microphone captures vocals and instruments with pristine clarity, depth and detail, making it the perfect starting point for emulating a plethora of timeless studio microphones.
Edge Duo’s dual-membrane capsule design feeds two separate XLR output channels via the included Y-cable, which allow the Duo to accurately emulate the characteristic on- and off-axis response of each mic for true multi-dimensional mic modeling.
Unique Design
Edge Duo features a 6-micron gold-sputtered dual-membrane capsule.
It provides an incredibly smooth, rich and organic response that the powerful Antelope Audio modeling engine can shape into the true sound of some of the most expensive and sought-after microphones in the history of audio recording.
High compatibility

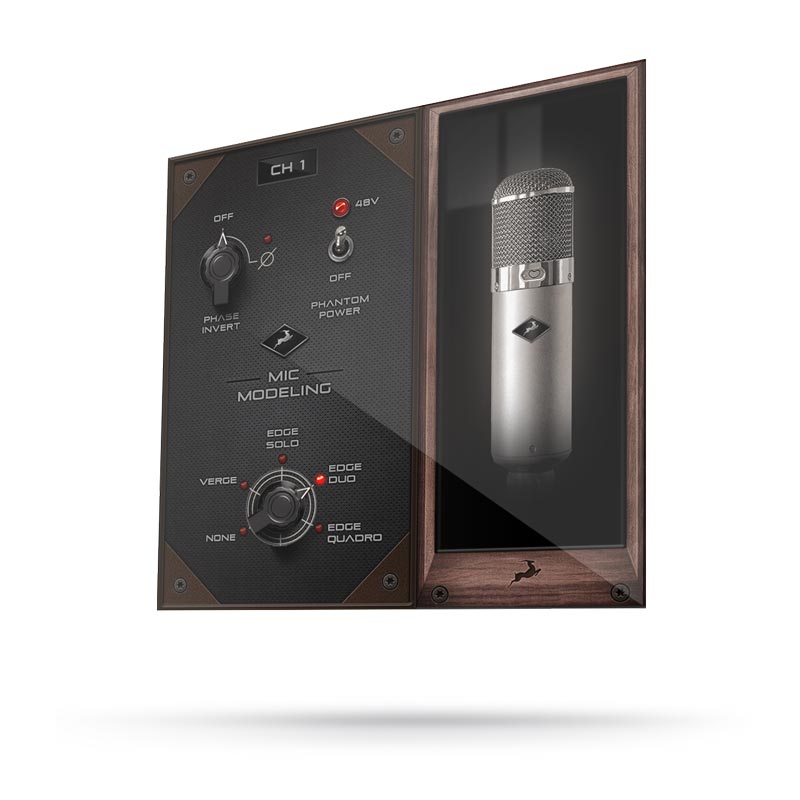

The Edge emulations are designed to work hand-in-hand with Antelope’s own precision mic preamps and converters. For maximum accuracy, Edge Duo can be used with any of Antelope Audio’s mic preamp-equipped interfaces, whose built-in FPGA processing capabilities allow real-time vintage mic emulation.
However, Edge Duo also includes Antelope’s native mic emulation plug-ins, meaning you can use any third-party audio interface and even change modeling settings after recording. Available in VST, AU and AAX formats for both macOS and Windows, Antelope’s native AFX plug-ins* provide everything we’ve come to expect from their industry-leading FPGA FX, with minimal latency, a high degree of oversampling and precise floating-point calculations.
SPECIFICATION
Microphone type: Large Diaphragm Condenser Mic
Diaphragm: Large – double-sided 6u gold-sputtered membranes
Diaphragm diameter: 34mm
Polar pattern: Multi-pattern (cardioid, figure-8, omnidirectional)
Frequency response: 20HZ ~ 20kHZ
Sensitivity: -35dB | 18mV/Pa (-1 to +3dB)
THD+N: -116dB
Self-noise: 19dB(A)
SNR: 75dB(A)
Output impedance: 50 Ohms @ 1kHz
Power requirements: 48V DC phantom power
Output connector: 5-pin male XLR
Color: Black matte
Weight (mic body): 1.23 lbs (560 grams)
Dimensions (mic body): 8.6″ x 2.1″ (219mm x 53mm)
In the box
Breakout cable: 16.4′ (5 meters) 5-pin female XLR to dual 3-pin male XLR (high grade oxygen-free copper Y-cable)
Mount: Shock absorber mount with pop filter
Case: Standard mid-size road case with handle and custom-fit foam inserts
